KONE INNOTRACK™
A revolutionary autowalk solution that requires no pit and offers unparalleled flexibility
Product information
Description

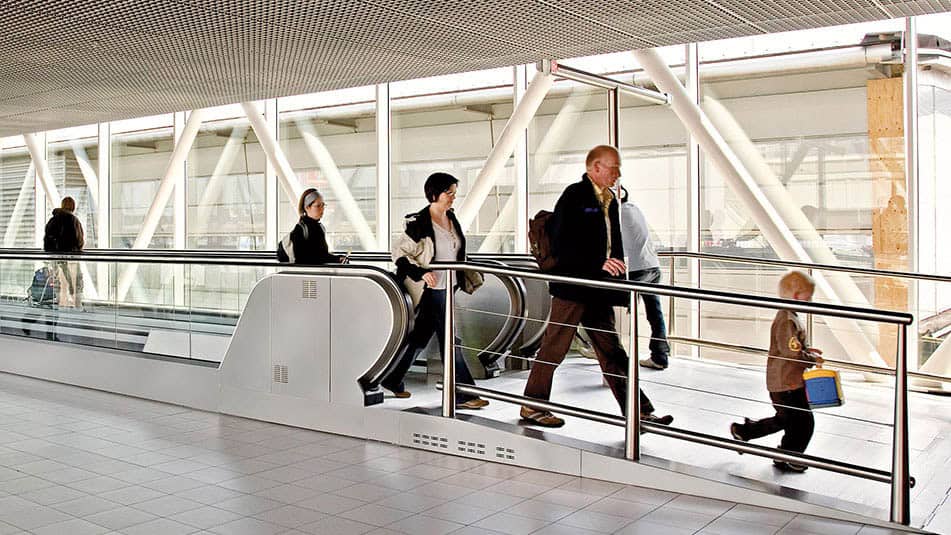

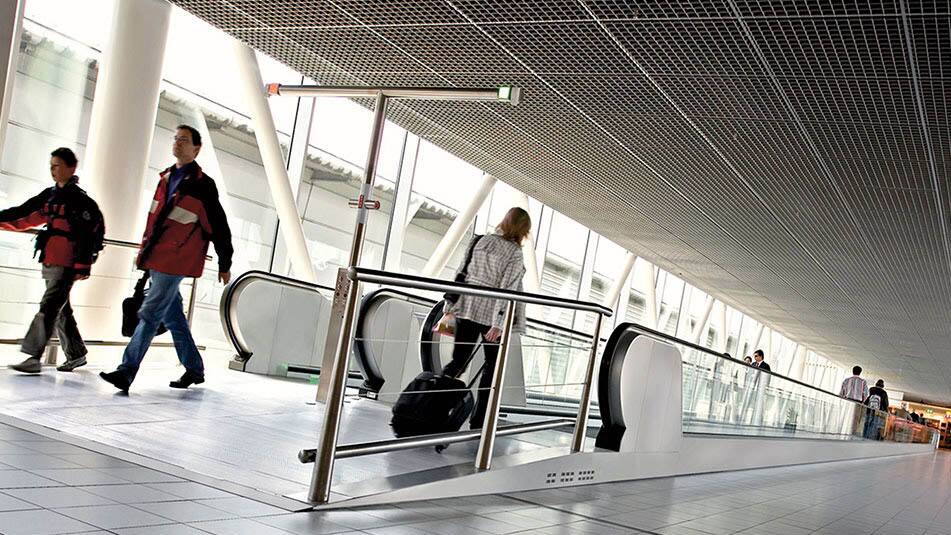

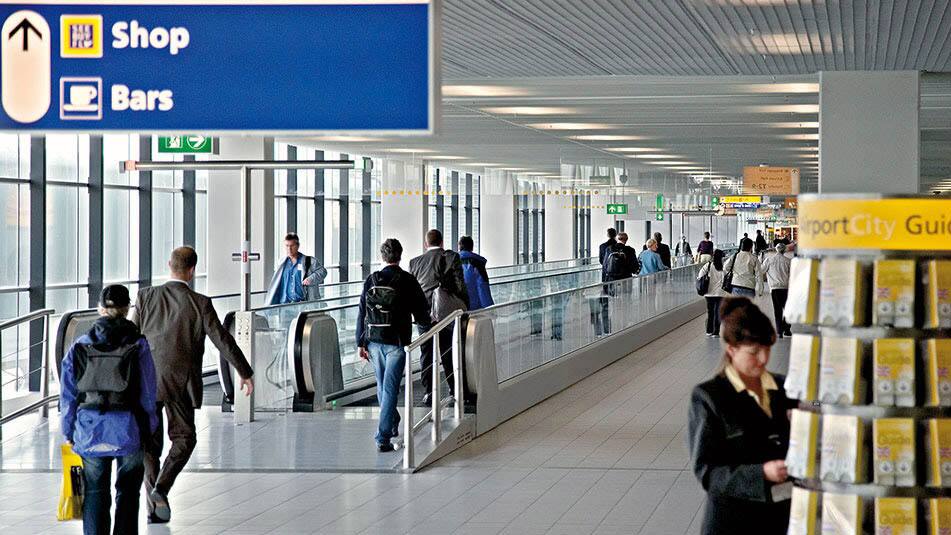

KONE InnoTrack ™ is the first autowalk that doesn’t need a pit. Its revolutionary modular design makes it ideal for improving people flow in existing buildings. You can easily adjust the length, change the color, and reinstall the autowalk in another location.
Specifications
- Operational environment: Indoor
- Speed: 0.5, 0.65 m/s
- Inclination: 0º
- Step width: 1000, 1400 mm
- Length: up to 60 m
DESIGN
- The components traditionally placed in the pit have been moved to the balustrades
- The pallets lower themselves directly under the stepping surface instead of circling the entire truss to the bottom
- The modular design of the truss makes it simple to assemble and modify
Tools and downloads
Escalator & Autowalk Planning guide
Our easy-to-understand guide gives you all the information you need when planning an escalator or autowalk solution, including guidance on building regulations and safety codes.
KONE InnoTrack™
The KONE InnoTrack is the world's first autowalk that doesn’t need a pit, meaning it can be installed in finished buildings on any floor and easily lengthened or shortened as required.
KONE Escalator and Autowalk Solutions
Our flexible range of escalators and autowalks can be tailored to a wide range of applications, and are all based on the same reliable technology and modern visual design.
Planning retail People Flow
Our easy-to-use planning guide takes you through the options for creating smooth, safe people flow in different types of retail environments, from shopping centers to big-box stores.
KONE solutions for airports
Our solutions for the unique demands of airport environments help manage the flow of people and goods into and through the airport safely, reliably, and efficiently.
KONE solutions for transit centers
Our range of solutions designed to cope with the tough demands of busy transit center environments includes elevators, escalators, autowalks, and doors.
Escalator and autowalk solutions
| Product name
| Type
| Segment
| Maximum rise
| Speed
| KONE TransVario premium drive available | Inclination
| 24/7 Connected Services available
| Energy-efficiency class
|
| TravelMaster 110
| Escalator | Commercial, retail, hotel, office, multi-use, stadium, medical
| 13 m
| 0.5 m/s | TravelMaster™ 110T (factsheet) | 30°, 35°
| Yes | A+++ |
| TravelMaster 115
| Inclined autowalk | Commercial, retail, multi-use, airport
| 7 m
| 0.5 m/s
| 10°, 12°
| Yes
| A+++ | |
| TransitMaster 120
| Escalator | Metro, airport, station, transport hub, multi-use
| 20 m
| 0.5, 0.65, 0.75 m/s | TransitMaster™ 120T (factsheet) | 27.3°, 30°, 35° | Yes
| A+++ |
| TransitMaster 140
| Escalator | Metro, airport, station, transport hub
| 35 m
| 0.5, 0.65, 0.75 m/s | TransitMaster™ 140T (factsheet) | 27.3°, 30° | Yes | A+++ |
| TransitMaster 165
| Horizontal autowalk | Metro, airport, station, transport hub, multi-use
| 100 m length
| 0.5, 0.65, 0.75 m/s
| 0-6°
| Yes | A+++ |
